| Structure: |

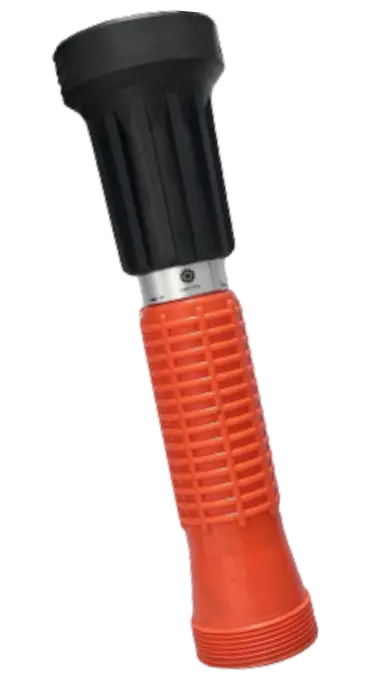

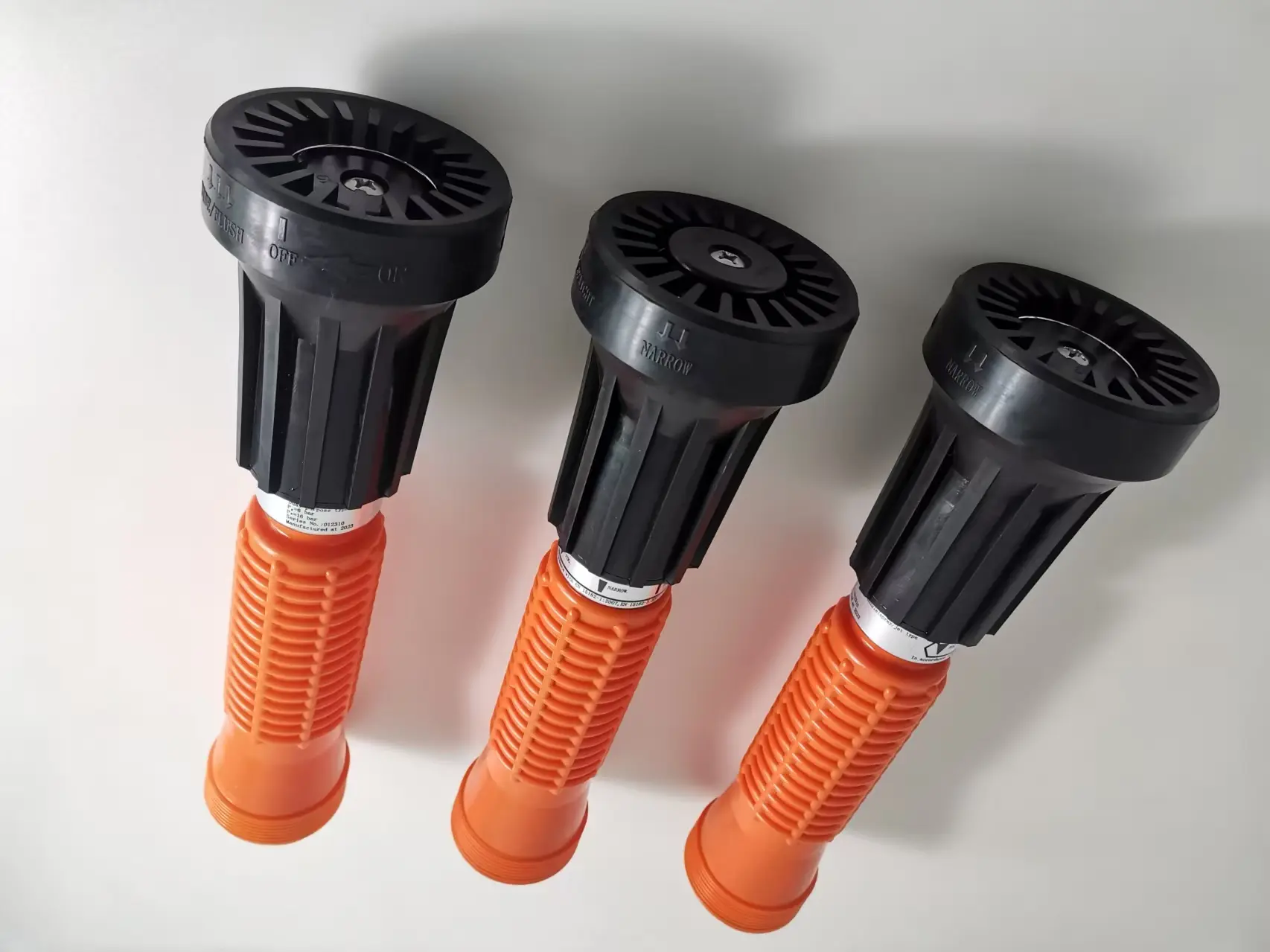

Designed with only a few parts produces an insensible and efficient jet/spray dual purpose nozzle. Absulutly smooth inner surface for less pressure loss design. The adaptors are made by forging and pressing. |
| ย ย ย ย Material:ย |
The body of the head is made of brass with chrome plated, so this nozzle has superior anticorrosive feature, suitable to use in terrific marine environment. The head is covered with heavy duty protective rubber. ย The rotating head of the nozzle is made of rubber and various configurations. The handle is made of extremly high impact resistant and durable thermoplastic with glassfibre reinforced. ย The valve plate was made by import plastic material.ย |
| ย ย ย Features: |
Low pressure loss |
| Easy to handle design |
| Light weight, less than 1kg |
| Full corrosion resistance against sea water. |
| Maintenance-free long lifecycle |
| Low operating forces |
| Resistant to harsh marine environment |
| ย ย ย Working Principle:ย |
Firehose nozzles are easy to adjust continuously from shut off via a hollow straight stream to a spray jet between 0 and 120ยฐ ย b y turning the rubber coated head of the nozzle. They deliver a wide range of droplets. Large droplets and longer throw distances when the straight stream is selected. A fine spray jet with its centre directed forwards is produced by means of spray teeth with specially designed deflection surfaces.ย |
| Specification:ย |
| WOGย (12mm), WOGย (16mm), WOGย (19mm), the inlet is BSP 2โณ male thread. |
| ITEM NO. |
OUTLET OPENING (mm) |
| WOG-12 |
12 |
| WOG-16 |
16 |
| WOG-19 |
19 |
| ย ย ย Application:ย |
Theย jet/spray nozzle is widely used for marine and offshore fire-fighting, assembled with a firehose through coupling. This jet/spray nozzle is extremly suitable for marine environment with great functional and economical features. They should be used for firefighting only and not for washing the deck or other applications.ย |
| Related Products: |
| ITEM NO. |
DESCRIPTION |
| WOG-12 |
Jet/spray nozzle, 12 mm without adaptor |
| WOG-16 |
Jet/spray nozzle, 16 mm without adaptor |
| WOG-19 |
Jet/spray nozzle, 19 mm without adaptor |
