Right angle valve

Description:

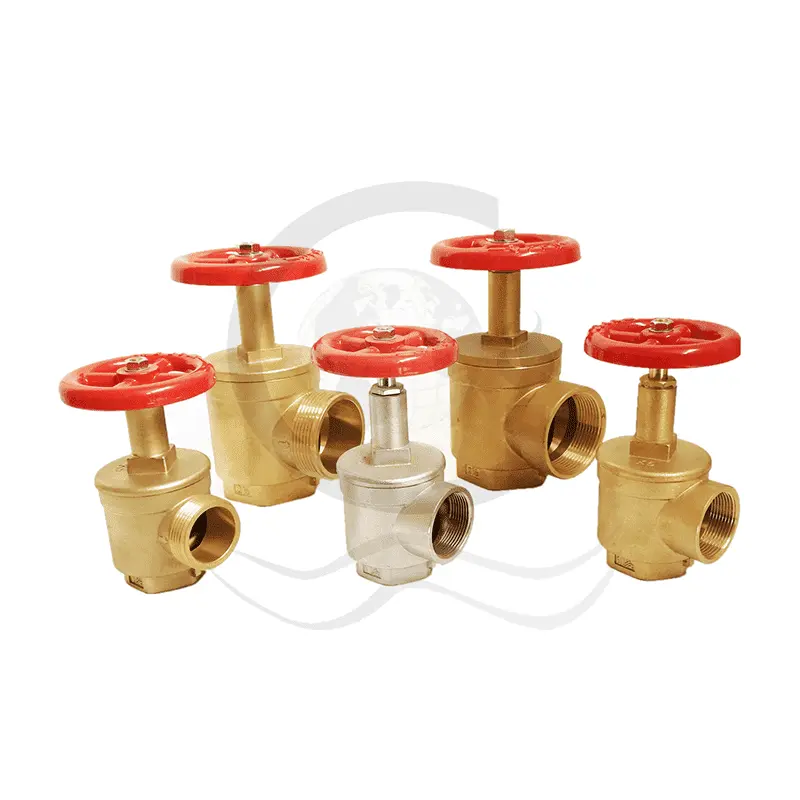

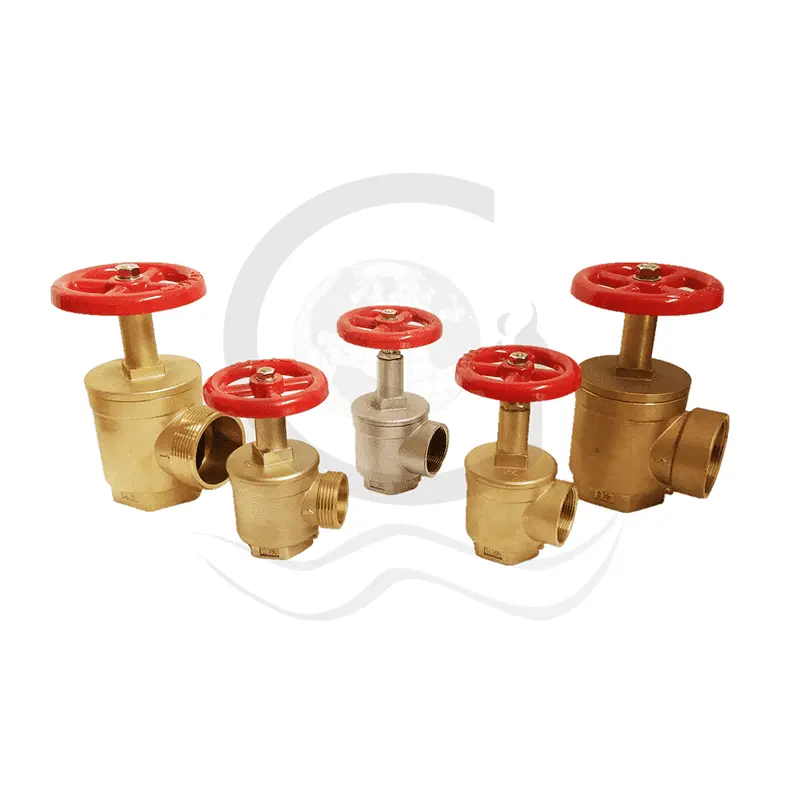

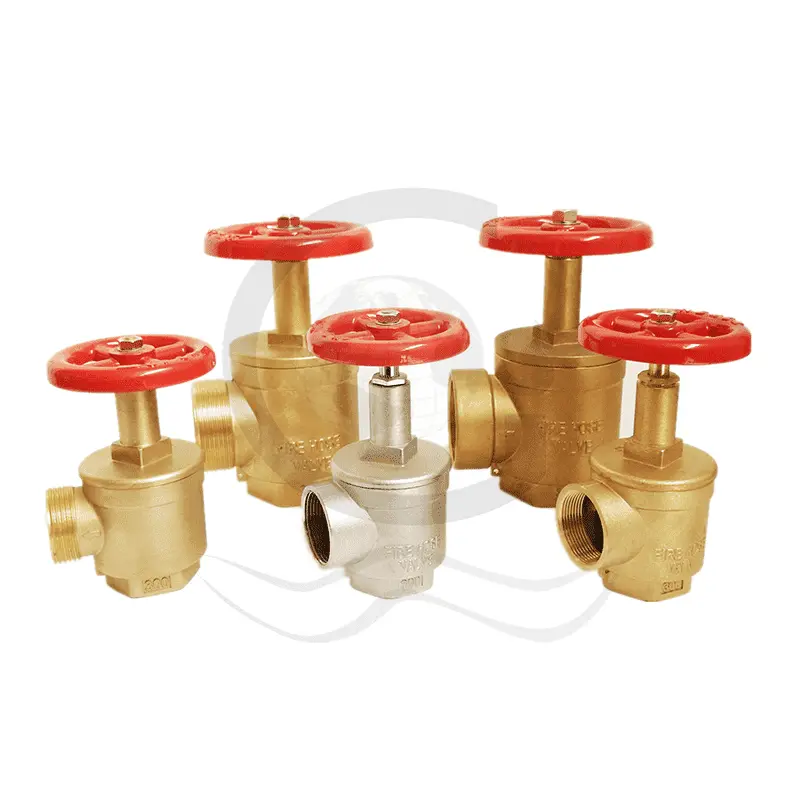

Angle Landing Valve is a type of globe pattern hydrant valve. These angle type landing valves are available with male outlet or female out and are manufactured to comply to FM&UL standard The Angle landing valves are classified under low pressure and are suitable for use at nominal inlet pressure up to 16 bars. The internal casting finishes of every valve is of high quality ensuring a low flow restriction that meets the standard’s water flow test requirement.There are two types of right angle fire hydrants: male thread and female thread. Generally used with hose racks, hoses and fire nozzles. Usually the assembled product is placed in the fire box or hung on the wall alone. When use it, open the fire hydrant and pull out the hose to use.

Key Specificatoins:
●Material:Brass
●Inlet: 1.5”&2.5” NPT
●Outlet:1.5”&2.5” NST
●Working pressure:16bar
●Test pressure: Body test at 24bar
●Manufacturer and certified to NFPA standard

Processing Steps:
Drawing-Mold-Casting-CNC Maching-Assembly-testing-Quality Inspection-Packing

Main Export Markets:
●East South Asia
●Mid East
●Africa
●Europe
●South American

Packing & Shippment:
●FOB port:Ningbo / Shanghai
●Packing Size:53*23*17cm
●Units per Export Carton:10 pcs
●Net Weight:13.5kgs
●Gross Weight:14kgs
●Lead Time:25-35days according to the orders.

Primary Competitive Advantages:
●Service:OEM servise is available,Design,Processing of  material provided by clients,sample available
●Country of Origin:COO,Form A, Form E, Form F
●Price:Wholesale price
●International Approvals:ISO 9001: 2015,BSI,LPCB
●We have 8 years of professional experience as a manufacturer of fire fighting equipments
●We make the packing box as your samples or your design fully
●We are located in Yuyao County in Zhejiang ,Abuts against Shanghai, Hangzhou, Ningbo , there are graceful surroundings and convenient transportation

Application :
Angle type landing valves are suitable for both on-shore and off-shore fire protection applications and suitable for installation on wet risers for firefighting. These valves are generally used with permanently charged water from a pressurized supply with water and accordingly mounted in fire hydrant systems at Internal or External places.
